Control Room & Command Center Video Wall Solutions
Mission-critical video walls engineered for 24/7 operations — Planar and Samsung displays designed for control rooms, NOCs, SOCs, and command centers. Deployed pan-India by VTL.
What Are Control Room Display Solutions?
Control room display solutions are purpose-built video wall systems designed for 24/7 mission-critical environments where operators monitor real-time data, video feeds, SCADA systems, and alert dashboards. They differ fundamentally from standard commercial displays in their reliability engineering, redundancy features, and long-term performance stability.
Standard commercial displays are not suitable for control rooms. Under 24/7 operation with static content, they risk burn-in, brightness degradation, and premature failure. Control room displays are engineered for continuous operation with high MTBF (Mean Time Between Failures), redundant power supplies, automatic failover, front-access serviceability, and consistent brightness and color uniformity over years of operation.
Two primary display technologies serve modern control rooms: fine-pitch direct-view LED (seamless, burn-in proof, long lifespan) and narrow-bezel LCD (cost-effective, high per-panel resolution). The choice depends on room size, viewing distance, budget, and operational requirements.
24/7
Operation
100K hrs
LED Lifespan
P0.7+
Fine Pitch
Control Room Display Technologies
Two proven display technologies for mission-critical environments, each with distinct advantages depending on your operational requirements.
Fine-Pitch LED Video Walls
Direct-view LED with pixel pitches from P0.7 to P1.5. Seamless images with no bezels, high brightness, excellent long-term stability, and no burn-in risk with static content. The modern replacement for rear-projection cubes in large command centers with moderate-to-close viewing distances.
Products: Planar DirectLight LED, Samsung IF Series
Seamless, burn-in proof, 80,000-100,000 hour lifespan

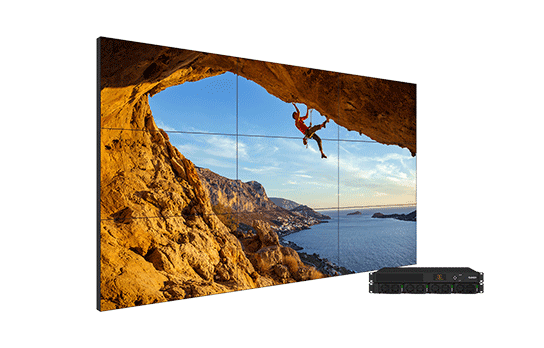

Narrow-Bezel LCD Video Walls
Ultra-narrow bezel LCD panels (0.44mm to 1.7mm gaps) in 2x2, 3x3, or larger configurations. A cost-effective choice for smaller control rooms and situations where per-panel resolution matters. 24/7 rated models available from both Planar and Samsung.
Products: Samsung UDE/UHE Series, Planar VM Series
Higher resolution per panel, lower cost for smaller configurations
| Criteria | Fine-Pitch LED | Narrow-Bezel LCD |
|---|---|---|
| Seamlessness | Zero bezels, continuous image | Ultra-narrow bezels (0.44mm+) |
| Burn-In Risk | None (LED is immune) | Possible with static content |
| Brightness Stability | Excellent over 10+ years | Degrades over 5-7 years |
| Cost (Small Config) | Higher per-panel cost | More cost-effective |
| Resolution per Panel | Depends on pixel pitch | Higher native per-panel resolution |
| Lifespan | 80,000-100,000 hours | 50,000-60,000 hours |
| Front-Access Service | Yes, module-level | Yes, panel-level |
| Best For | Large walls, close viewing, 24/7 static | Smaller rooms, budget-conscious |
Control Room Display Brands We Distribute
Planar
DirectLight LED (fine-pitch, mission-critical), TVF Series (ultra-fine pitch), VM Series (narrow-bezel LCD), CarbonLight (lightweight carbon fiber LED)
Control room heritage, mission-critical engineering, industry-leading reliability, Planar Wall Director software
View Full Portfolio
Samsung
IF/IFH Series (fine-pitch LED), UDE/UHE Series (narrow-bezel LCD), video wall controllers
Display quality, wide product range, MagicINFO CMS, strong enterprise ecosystem and support network
View Full PortfolioVideo Wall Controllers & Processing
The video wall controller is the nerve center of any control room. It manages all input sources, distributes content across the wall, and enables operators to view multiple data streams simultaneously through flexible multi-window layouts.
Key controller capabilities for control rooms include multi-source input handling (HDMI, DisplayPort, SDI, IP streams), KVM (keyboard-video-mouse) integration for operator workstations, alarm-triggered preset layouts that automatically reconfigure the display during incidents, and PIP/PBP for simultaneous viewing of different sources.
Planar Wall Director provides drag-and-drop source management with preset layouts and alarm integration. Samsung MagicINFO offers comprehensive display management. Third-party controller options from Barco, Matrox, Datapath, and RGB Spectrum are also supported through VTL's system integrator partners.
Control Room Applications
Network Operations Centers (NOC)
IT infrastructure monitoring, network status dashboards, and alert management for telecom, ISP, and enterprise IT environments.
Security Operations Centers (SOC)
CCTV surveillance feed display, cybersecurity dashboards, and incident response visualization for corporate, government, and critical infrastructure security.
Smart City Command Centers
Traffic management, SCADA monitoring, emergency coordination, public utility monitoring, and environmental sensor dashboards for municipal governments.
Transportation Control Rooms
Air traffic management support, railway operations, port operations, traffic management centers, FIDS, and signaling dashboards.
Utility & Energy Control Rooms
Power grid monitoring via SCADA, water distribution oversight, and gas pipeline monitoring. 24/7 critical operations requiring zero downtime.
Emergency Response Centers
Multi-agency coordination, GIS mapping, resource tracking, and situation awareness for disaster management and emergency response.
Broadcast Studios
Multi-feed monitoring, production control rooms, and master control rooms for television and media operations.
Control Room Design Considerations
Critical factors that influence the design, specification, and long-term performance of a control room video wall system.
Viewing Distance & Pixel Pitch
Select pixel pitch based on operator viewing distance. P1.2 or finer for 2-3 meter viewing; P1.5 for 4+ meters.
Room Lighting
Control ambient light for optimal display visibility. Avoid reflections and glare on video wall surfaces.
Operator Ergonomics
Display height, tilt angle, and viewing distance from operator positions must meet ergonomic standards for 8-12 hour shifts.
Heat Management
Plan HVAC capacity for display thermal output. Consider raised floors for cable routing and airflow management.
Power Redundancy
UPS integration, redundant power supplies, dedicated circuits, and automatic failover to ensure zero display downtime.
Front-Access Maintenance
Ensure all panels are serviceable from the front without disturbing adjacent displays or requiring rear access.
Control Room Video Wall Pricing
Control room projects are highly custom, and pricing is always project-specific. Key cost components include video wall displays, controller and processor hardware, mounting structure, cabling infrastructure, installation, and software licensing. The primary cost drivers are display technology (LED is premium over LCD), pixel pitch (finer pitch costs more), wall size, and the level of redundancy required.
VTL provides competitive OEM pricing from Planar and Samsung with SI-friendly commercial terms. Contact our specialists for a detailed project consultation and custom quote.
Control Room Deployment Process
Requirements
Gathering, site survey, workflow analysis
System Design
Technology selection, wall config, controller architecture
Procurement
OEM product staging and quality check
Structural Prep
Mounting, power, and HVAC preparation
Installation
Display alignment, controller, source integration
Calibration
Color uniformity, brightness, preset programming
Training
Operator training and acceptance testing
Handover
Documentation and ongoing support
Frequently Asked Questions About Control Room Display Solutions
Fine-pitch direct-view LED is the preferred technology for modern 24/7 control rooms. It offers seamless images with no bezels, excellent brightness stability over time, no burn-in risk with static content, long lifespan (80,000-100,000 hours), and front-access serviceability. Planar DirectLight and Samsung IF series are leading options. Narrow-bezel LCD remains a cost-effective alternative for smaller control rooms.
LED video walls use direct-view LED modules that tile seamlessly, offering superior long-term brightness stability, no burn-in risk, and higher reliability for 24/7 operation. LCD video walls use individual panels with ultra-narrow bezels (0.44mm minimum), are more affordable for smaller configurations, and offer higher resolution per panel. LED is the modern choice for mission-critical control rooms.
Control room video wall pricing is highly project-specific, depending on display technology (LED vs LCD), pixel pitch, wall size, controller architecture, redundancy requirements, and installation complexity. Fine-pitch LED walls are premium investments while narrow-bezel LCD configurations are more affordable. Contact VTL for a detailed project assessment with competitive OEM pricing from Planar and Samsung.
